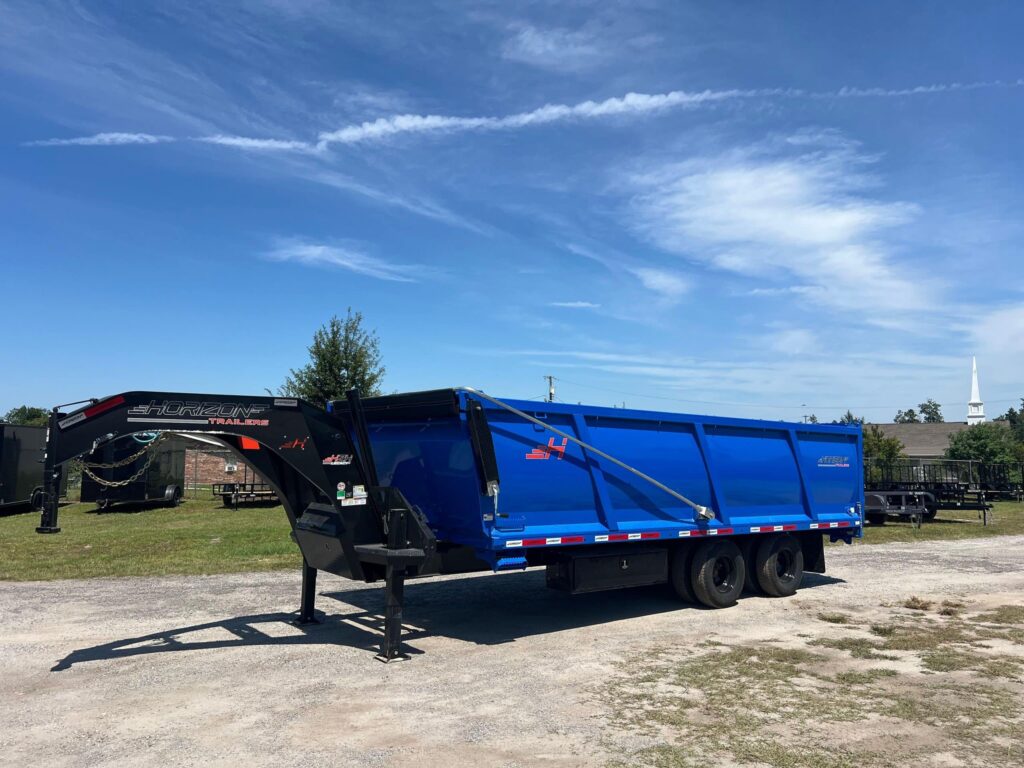

2025 Horizon Trailers Gooseneck Dump Trailer 20k

2025 Horizon Trailers Gooseneck Dump Trailer HZH 96″x20′ 20k 4′ Sides Unit details See us for a complete list of features and available options for this stock number! Description below may contain factory standard features and specifications which are not available and are subject to change. TONGUE TONGUE: 12″ I-Beam (19 lbs/ft) TOOLBOX: Diamond Mesh Wire Floor Storage COUPLER: Pintle Ring (42,000 lbs) JACKS: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs) SAFETY CHAINS: 3/8″ Grade 70 Safety Chain w/Clevis Hook (2 each) SPARE: Weld On Spare Tire Mount CHASSIS MAIN FRAME: 12″ I-Beam (19 lbs/ft) SIDES: Slide In Side Step On Both Sides LEFT SIDE: Lockable Toolbox (Houses Batteries And Pump) DUMP BED WIDTH: 96″ TOP RAIL WIDTH: 96″ FLOORING: 7ga. Steel Bed CROSSMEMBERS: 3″ Channel (3.50 lbs/ft) 16″ Spacing D-RINGS: 4 D-Rings Welded Inside Box SIDES: 2′ High, 10ga. Rounded Steel GATE: 3 Way Door – Spreader Gate RAMPS: Ramp Pockets w/ 8′ Long Heavy Duty Slide In 4″ Channel Ramps (5,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12″ OR MORE) TARP: Ground Level Crank Over Tarp Kit NEW STANDARD FEATURE! LIFT SYSTEM DUMP LIFT: 12 Ton Telescopic Cylinder KTI 12V HYDRAULIC PUMP: 2 Button Hydraulic – Power Up / Gravity Down RUNNING GEAR TIRES: ST235/80R16 10 Ply Tires Dual (3,080 lbs) RIMS: 16″ Black Mod Wheels AXLES: 2 – 10k Lippert Electric Brake Dual Oil Bath Spring Axles SUSPENSION: Spring ELECTRICAL AND LIGHTING BATTERY: 2 – Interstate 27 Deep Cycle Battery SOLAR: 10 Watt Solar Panel CHARGING SYSTEM: 110V Integrated Trickle Charger LIGHTS: DOT Approved Tecniq LED Lights FINISH PAINT: 6 Stage Powdercoat Show More Show Less
